Overview

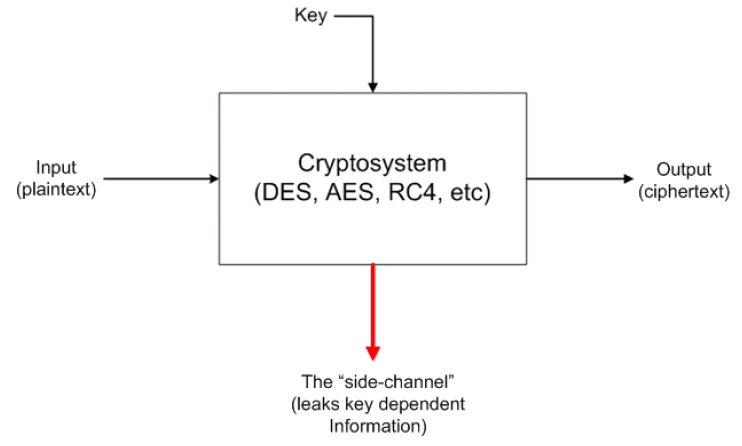

Published at IEEE ISCAS 2016, this research designed and validated a novel defense against side-channel attacks — a class of security vulnerabilities where an attacker infers secret cryptographic keys by observing a system’s power consumption or timing, rather than breaking the encryption algorithm itself.
The core innovation (MTD3L) applies a selective multi-threshold voltage assignment strategy to an existing secure design methodology, achieving equivalent attack resistance at significantly lower energy and area cost. Results were validated against Differential Power Analysis (DPA) attacks.
Key Contributions
- Introduced Multi-Threshold Voltage assignment to D3L circuits
- Demonstrated reduction in energy and area overhead vs. standard D3L
- Maintained equivalent side-channel attack resistance
- Validated against differential power analysis (DPA) attacks
Technical Details

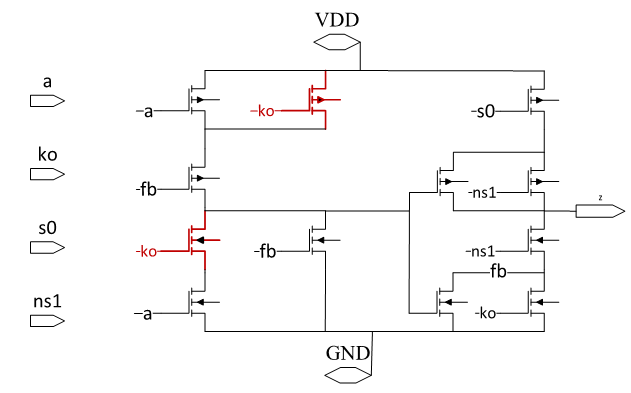

MTD3L assigns multi-threshold voltages to transistors within D3L cells, targeting the high-threshold voltage to leakage paths and low-threshold voltage to performance-critical paths. This selective assignment reduces static power without compromising the balanced switching behavior that provides side-channel resistance.
Implementation
The design was implemented and tested using:
- Process: Industry-standard CMOS process
- Design Tools: Cadence Virtuoso, Synopsys Design Compiler
- Validation: Post-layout power simulation and DPA correlation analysis
Results
MTD3L achieves significant overhead reduction compared to standard D3L while maintaining the security properties required to resist side-channel attacks. The balanced power consumption characteristics are preserved through the careful threshold assignment strategy.
Publication
This work was presented at the IEEE International Symposium on Circuits & Systems 2016:
Habimana J., Sabado, F., and Jia Di, “Multi-Threshold Dual-spacer Dual-rail Delay-insensitive Logic: An Improved IC Design Methodology for Side Channel Attack Mitigation”. IEEE ISCAS 2016. 11 August 2016.
